Paper Roll Slitter

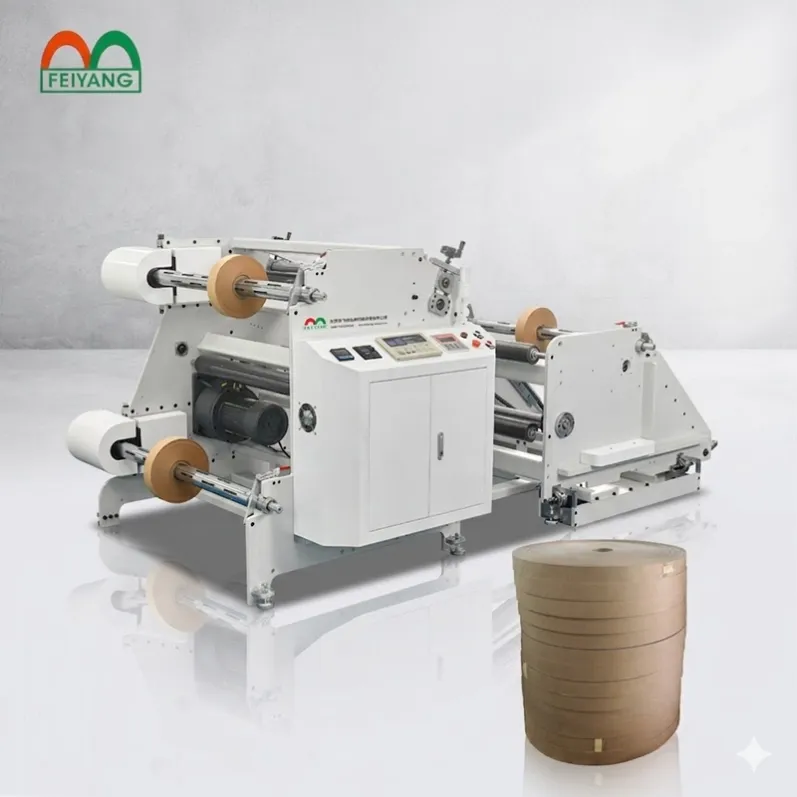

Slitting Machine – Cuts 1000mm Paper Rolls to Any Width
A vertical slitting machine that splits 1000mm kraft paper rolls into multiple smaller-width rolls. Features magnetic particle brake and photoelectric edge correction for consistent tension and neat edges. Comes with 10 standard slitting knives.
Specifications

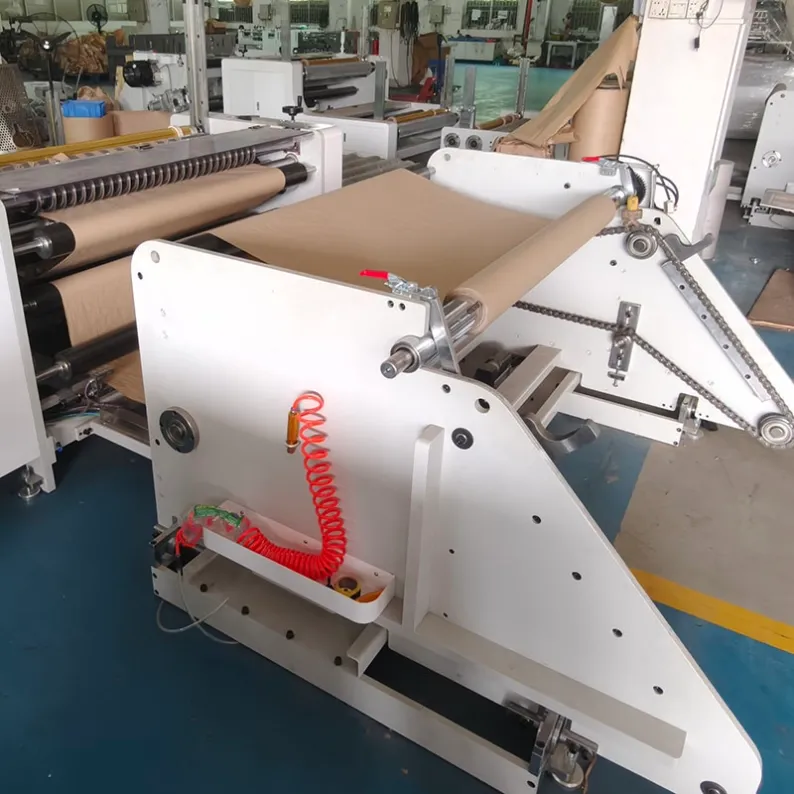

- Rewind Type
- double shafts collection ( manual)
- Max. Material Roll Diameter
- 1200mm
- Max. Material Roll Width
- 1000mm
- Max. Product Roll Diameter
- 600mm
- Finished Slitting Width
- 25-900mm
- Number of Slitting Strips
- 1-11 strips
Machine Parameters
Rewind Motor | National Standard Pure Copper |
Paper Thickness | 20-150g/㎡ |
Min. Slitting width | 25mm |
Collecting model | 3-inch gas shaft( 2pcs), can be customized according to customer requirements |
Deflate and inflate shaft | 3-inch gas shaft, can be customized according to customer requirements |
Max. Slitting Speed | 5-200/min |
Total Power | 6KW |
Total Weight | 1000KG |
Overall Dimension | L3200mm*W1900mm*H1400mm |
Big roll in. Small rolls out.
If you're working with large kraft paper rolls and need to split them into smaller widths for your production line, this is the machine that gets it done.
What keeps it accurate?

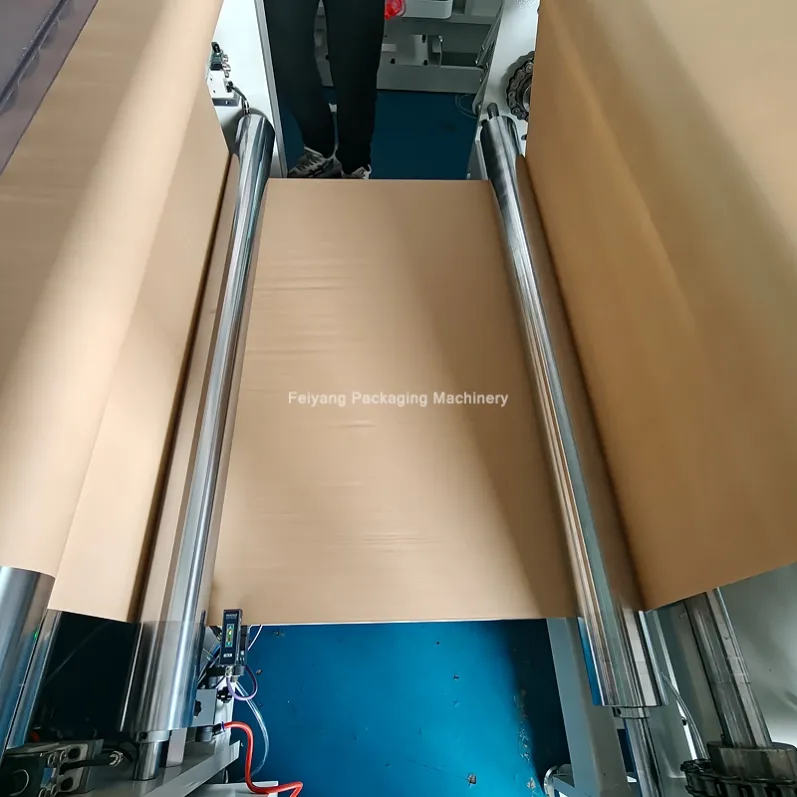

Two things. First, a magnetic particle brake that controls the unwinding tension. Second, a photoelectric edge correction system that keeps the paper tracking straight. Together, they make sure every slit roll comes out neat and even — no wavy edges, no loose winding.

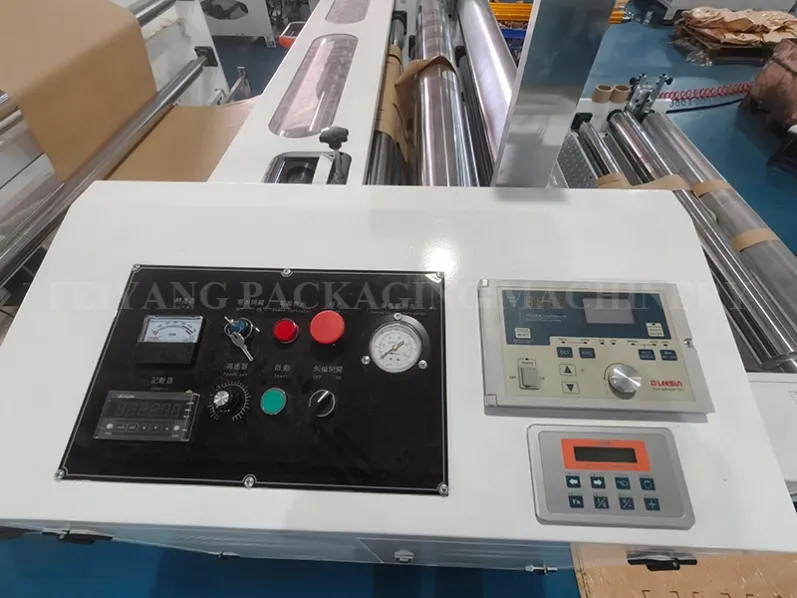

Speed control is straightforward.
Slitting speed and rewinding speed are both controlled by an inverter. You can dial it up or down depending on the paper type and your production needs.

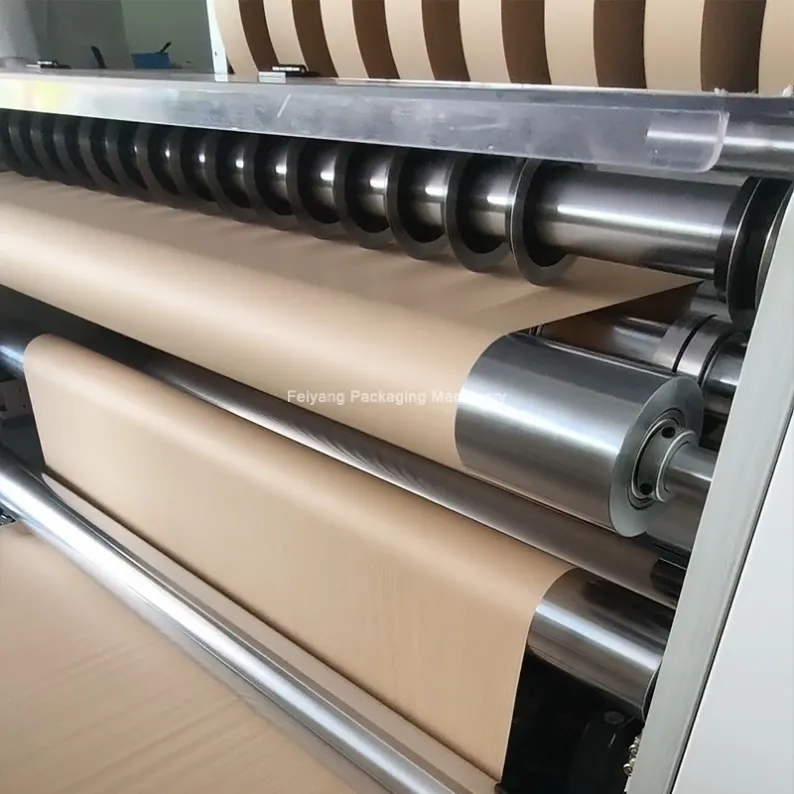

10 knives, ready to go.
The machine ships with 10 knives as standard. That's enough to get you started, and the knife positions are manually adjustable. Need a specific set of widths? Just set the knives accordingly.
One thing to note — tension control.
Out of the box, tension is adjusted manually. It works fine for most jobs. But if you're running tricky materials or need tighter consistency, we offer a constant-tension control upgrade — just let us know at the time of ordering, as it requires custom engineering.
Who is this for?
Anyone who buys paper in large master rolls but needs smaller widths for their production. If you're running paper rope machines, bag handle machines, or any equipment that takes narrow paper rolls, this machine saves you from buying pre-slit paper at a premium.
Not sure about the setup?
Paper type, roll weight, slit widths — every workshop is different. Send us a few details about what you're running, and we'll help you figure out the right knife configuration and tension setup.
